Hoshizaki Ice Machine Parts & Diagnostic Service

Component diagnosis and repair planning for commercial Hoshizaki ice machines. We verify the freeze, harvest, water and bin-control sequence before matching a board, pump, sensor, relay or water-circuit part.

Original Hoshizaki component references

All 13 original linked images remain available as organized cards. Product links are reference points; final selection requires the exact model, serial and original part number.

Control board

Board part number, revision, voltage, machine model and diagnostic history must match before replacement.

Open original product reference →

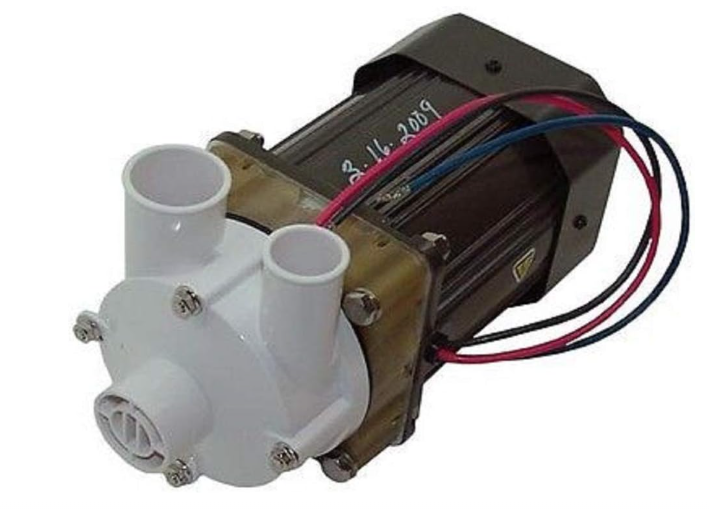

Water pump assembly

Pump voltage, mounting, impeller, connections and machine family are verified with the complete model and serial.

Open original product reference →

Mechanical pump seal

A leaking seal requires inspection of the shaft, pump housing and water circuit so the replacement is not damaged again.

Open original product reference →

Sanoprene water component

Flexible water-circuit components are matched by original part number, dimensions, connection and machine application.

Open original product reference →

Float switch

Float movement, switch state, connector, mounting and cleanliness are checked before condemning the assembly.

Open original product reference →

Water inlet component

The original reference is preserved; model, voltage, flow direction, connector and water-system condition must be confirmed.

Open original product reference →

Bin control thermostat

Control range, capillary routing, sensing position and compatibility affect safe ice-level control.

Open original product reference →

Float switch connector

Connector shape, pinout, wiring condition and original part number are verified as part of the water-level circuit.

Open original product reference →

Control relay

Coil voltage, contact arrangement, load rating, socket and the controlled circuit must match the machine.

Open original product reference →

Bin control assembly

The complete assembly is matched by machine series and tested for proper shutdown and restart operation.

Open original product reference →

Check-valve component

Valve body condition, spring, seat, flow direction and original part number are inspected before replacement.

Open original product reference →

Defrost sensor

Sensor resistance, temperature response, wiring and correct placement are checked against the machine sequence.

Open original product reference →

Pump motor assembly

Motor voltage, mounting, pump body, impeller, connectors and the complete water circuit are reviewed together.

Open original product reference →

Correct identification matters. Parts are matched from the complete equipment model and serial number, electrical ratings, dimensions, wiring and the actual diagnosis—not from appearance alone.

How the service process works

• Record the complete machine and bin model, serial number, voltage, production complaint, alarm history and water conditions.
• Observe the fill, freeze, harvest, pump-out and bin-control sequence before deciding which component has failed.
• Test water supply and distribution, sensors, switches, relays, boards, pumps, valves, refrigeration conditions and condenser performance.
• Match the approved part and revision, install it, clean or sanitize affected areas as appropriate, and verify a complete ice-making cycle.
