COMMERCIAL HVAC • COMPRESSOR PLANNING • DIAGNOSTIC SERVICE

Scroll Compressor Replacement & Service

Scroll compressors must be matched to the equipment and the refrigeration circuit—not selected by tonnage alone. We diagnose the cause of failure, verify the application and plan replacement using the complete compressor and equipment data.

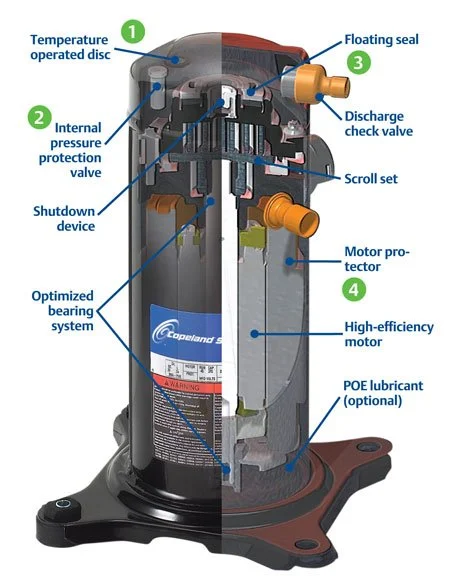

Cutaway view of a Copeland scroll compressor

Compressor options and application matching

The compressor references are organized below. Final selection depends on model, refrigerant, voltage, phase, capacity, oil and connection details.

Copeland scroll compressor cutaway

New Copeland single-phase scroll

Common residential and light-commercial applications from approximately 1 to 5 tons, matched from the original model and system conditions.

Copeland three-phase scroll compressor

New Copeland three-phase scroll

Three-phase options for commercial equipment require verification of voltage, rotation, protection, refrigerant and the exact application envelope.

Open original Copeland reference →

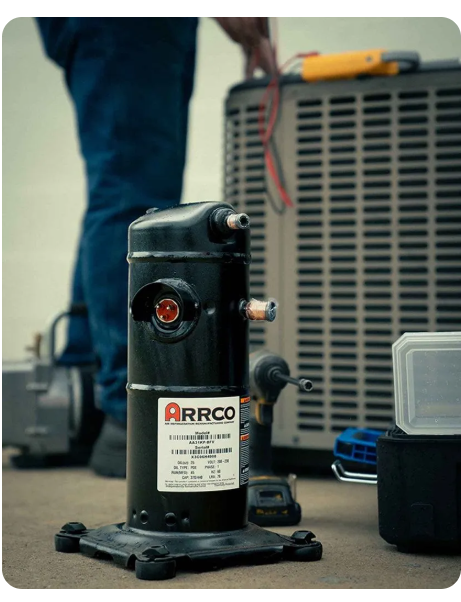

ARRCO remanufactured scroll compressor

ARRCO remanufactured compressor

A remanufactured option may be considered only after confirming cross-reference, electrical data, capacity, connections and warranty requirements.

Scroll compressor application reference

Replacement application review

We compare the original compressor, system refrigerant, operating envelope, mounting, piping and controls before approving any new or remanufactured replacement.

Correct identification matters. Parts are matched from the complete equipment model and serial number, electrical ratings, dimensions, wiring and the actual diagnosis—not from appearance alone.

How the service process works

  • Confirm the equipment and compressor model, serial, refrigerant, voltage, phase, frequency, capacity and connection configuration.
  • Determine why the original compressor failed by checking electrical supply, contactors, controls, airflow or water flow, refrigerant charge, oil return and system cleanliness.
  • Test winding resistance, insulation to ground, current draw and starting or inverter components before condemning the compressor.
  • When replacement is justified, plan refrigerant handling, contamination control, filter-drier work, leak testing, evacuation and commissioning for the actual system.

Servicio en español

Diagnosticamos la causa antes de descartar un compresor scroll. Verificamos modelo, refrigerante, voltaje, fases, capacidad, conexiones y las condiciones que pudieron causar la falla; después planificamos el reemplazo correcto y la puesta en marcha.

FROM OUR SERVICE CALLS · INSTAGRAM

Real repair examples

Scroll compressor service

Compresores scroll · Trabajos realizados

See how we approach each service call and what was achieved during the visit.

Newest work first

Scroll inside the video window for earlier work

Scroll compressor service area

Cyclone provides scroll compressor diagnostics and replacement planning in Westchester, Putnam and Yonkers.

For a compressor installed in a rooftop unit, begin with rooftop HVAC system diagnosis to identify contributing faults.

For a compressor on a walk-in or other refrigerated equipment, see commercial refrigeration system evaluation, which for a compressor includes electrical supply, controls, airflow and the original failure mode. If a Copeland compressor is a semi-hermetic reciprocating model rather than a scroll, see semi-hermetic head and valve repair, because on serviceable models diagnosis may allow a new head and valve plate instead of a whole compressor.

Zona de servicio de compresores scroll

Cyclone ofrece diagnóstico y planificación del reemplazo de compresores scroll en Westchester, Putnam y Yonkers.

Si el compresor está en un equipo rooftop, comience por la revisión completa del equipo rooftop para identificar otras fallas que influyan. Si el compresor pertenece a un cuarto frío u otro equipo refrigerado, vea la evaluación del sistema de refrigeración comercial, en inglés, que en un compresor incluye la alimentación eléctrica, los controles, el flujo de aire y la causa original de la falla. Si un compresor Copeland es semihermético y no scroll, vea la reparación de cabeza y válvulas en compresores semiherméticos, en inglés: en modelos reparables se pueden cambiar la cabeza y la placa de válvulas cuando el diagnóstico lo confirma.

New Copeland Compressors

R410 single-phase Copelan compressors from 1 to 5 tons

Arrco Remanufactured Compressors

R410 single-phase Copelan compressors from 1 to 5 tons

Three-phase R410 Copelan compressors from 1 to 5 tons
